PVC & CPVC  Injection Quills

PVC & CPVC Injection Quills

PVC & CPVC  Injection Quills provide broad chemical compatibility for a variety of water and industrial chemical applications.  These quills can be used with most acid & base solutions, and many chemicals including chlorine & ammonia.

PVC is an excellent all-around  material up to approximately 130°F.

CPVC can provide many of the same properties as PVC up to approximately 180°F.  Under some conditions, CPVC can become brittle as it ages, so PVC is recommended unless higher temperatures are present.

Maximum pressure: 150 psi

For additional information view our Selection Guide.

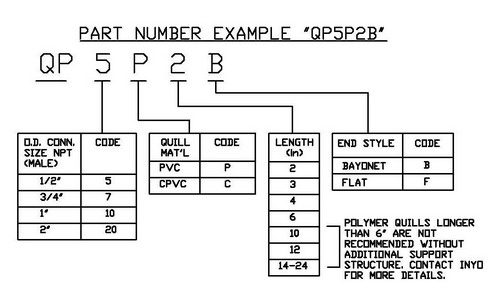

Part Numbers for PVC & CPVC Threaded Injection Quills

PVC CPVC injection quill

pdf Download PVC & CPVC Datasheet


 Kynar Injection Quills

Kynar Injection Quill

Kynar provides excellent chemical resistance properties up to approximately 225°F.

Maximum pressure: 150 psi

For additional information view our Selection Guide.

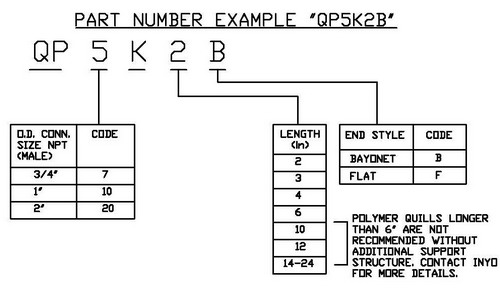

Kynar Part Numbers

PVC CPVC injection quill

pdf Download Kynar Datasheet




Custom Injection Quills

Inyo can provide a wide range of custom quills to meet your specific needs.  Shown below are several examples

kynar injection quill



threaded PVDF injector

Several Kynar quills designed with a male end fitting for connection to a check valve



PVDF injector with steel support tube

A PVDF (Kynar) quill designed with a  removable steel support tube.  This allows a longer injector to be used in a large pipeline without concerns for bending or breakage.  Used in a meat processing plant's hot water process line for injecting a bromine solution.
